CLEVER | ELEGANT | SAFE

A beautiful and elegant solution to make your home more accessible.



These air-driven panoramic elevators are silent, compact, energy-efficient, and environmentally friendly.



At E L E V  A R T E , we want to help you and your loved ones move in a safer, more comfortable way around their home.



Make your life easier. Move up in the world. Place some art in your home.

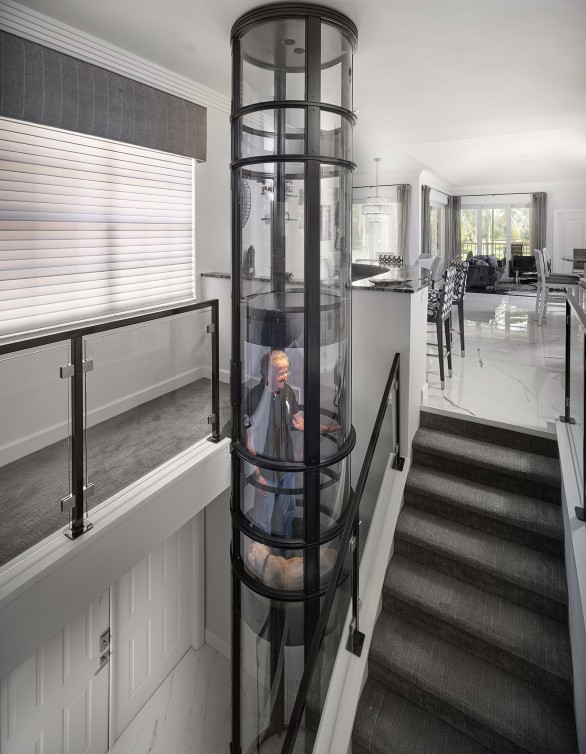

Man riding a single-passenger elevator

PVE30

Single-Passenger


"Most compact elevator in the world"


  • Diameter: 30 inches (750 mm)
  • Max Load: 350 lb (160 kg)
  • Speed: 35 fpm (0.15 m/s)
  • 2-5 stops up to 50 ft (15 m) total rise

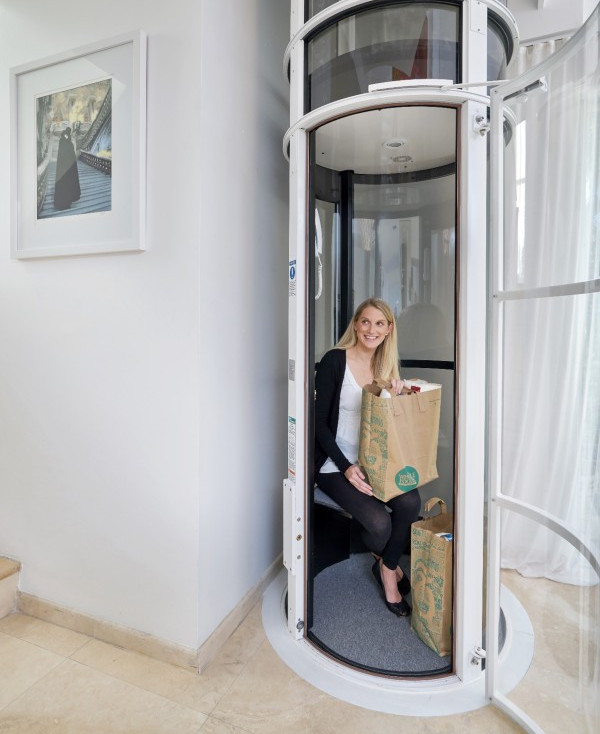

Woman sitting in a two-passenger elevator, carrying grocery bags.

PVE37

Two Passengers


"The first and most versatile"





  • Diameter: 37 inches (933 mm)
  • Max Load: 450 lb (205 kg)
  • Speed: 35 fpm (0.15 m/s)
  • 2-5 stops up to 50 ft (15 m) total rise

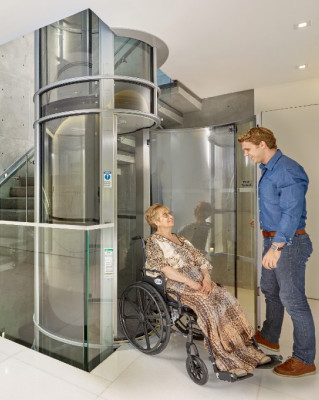

Man greeting woman in a wheelchair as she exits an elevator.

PVE52

Three Passengers


"Our largest - wheelchair accessible"


  • Diameter: 52 inches (1340 mm)
  • Max Load: 525 lb (238 kg)
  • Speed: 30 fpm (0.10 m/s)
  • 2-5 stops up to 50 ft (15 m) total rise
Quote here
General features

Powered by air



Think of it as a giant syringe, or like the pneumatic tubes you may have seen in banks for sending items. These vacuum elevators work with the same principle: Turbines suck the air out of the top of the outer cylinder so that the cabin gets pulled upward. Next, a cushion of air below the cabin gently leaks out to allow the cabin to descend. A wonder of modern-day engineering!

No pit. No hoist. No machine room required!



Not requiring a pre-construction shaft, pit or machine room, these elevators simply rest on the existing ground floor, offering more flexibility of installation while optimizing space within the home.



A plug & play system requiring a 220 volt power supply, these eco-friendly elevators utilize very few moving parts during operation and have minimal maintenance requirements with no harmful oils, gases or lubricants utilized for operation.


Certified for up to 5 stops or 50 feet in total rise, they are custom built to the height of each home with three different sizes available to meet your projects spatial and installation requirements.

Absolute Safety



Pneumatic Vacuum Elevators are annually certified & safety inspected by the prestigious Liftinstituut, one of the world’s leading elevator certification organizations.



If the power goes out in your home, you will not get stuck in the elevator. When the power goes out, the safety system is designed to automatically switch to slow descent to the lowest level; the mechanical locks open to allow passengers to exit. Mechanical brakes engage if the elevator ever begins to free-fall after a couple of inches.
